Thông tin chi tiết sản phẩm:
Thanh toán:
|
| nguồn điện: | thủy lực | Điện áp: | 380V |
|---|---|---|---|
| cân nặng: | 3550kg | lực lượng danh nghĩa: | 120t |
| Đường kính xi lanh: | 500 | Công suất động cơ: | 7,5kw |
| trọng lượng (kg): | 5000 | Loại máy: | Máy ép thủy lực |

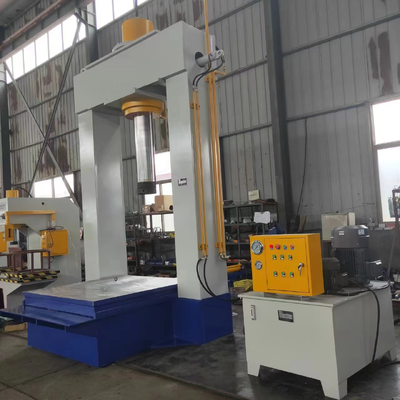

XDEM 315T Stationary Hydraulic Track Pin Press Gantry Hydraulic Press
The 315 ton mobile cylinder gantry hydraulic press is a mobile gantry structure hydraulic press with a nominal pressure of 3150 kilonewtons (approximately 315 tons), mainly used for plastic processing of metal and non-metal materials. This device combines the universal characteristics of gantry hydraulic presses with the design advantages of mobile workbenches, and is suitable for various industrial scenarios that require flexible adjustment of machining dimensions.
Features:
1 . Gantry frame: The equipment body adopts a high-strength steel welded gantry type all steel structure, which is subjected to vibration aging or tempering vibration aging treatment to eliminate internal stress, ensure small mechanical deformation, high overall rigidity and stability. Rack design is typically optimized through finite element analysis to achieve high precision.
2. Mobile workbench: One of its core features is that the workbench can move up and down, and some models can also be customized to move forward and backward. This design greatly expands the opening and closing height and processing range of the machine, facilitating the handling and processing of workpieces of different sizes, and making it more flexible to use.
3. Hydraulic system: The hydraulic system is the core power part, mainly composed of the master cylinder, hydraulic pump station (including oil pump, motor, oil tank, etc.), and valve block. Key components such as the surface of the oil cylinder piston rod will undergo quenching treatment, and the main hydraulic pipelines will be connected by flanges and undergo acid washing and passivation treatment to ensure the cleanliness of the oil and the reliability of the system.
4. Control system: Manual control or electric/automatic control options can be provided according to customer needs.
Main Parameters:
| No. | Item | Unit | YM200T | YM315T |
| 1 | Nominal pressure | KN | 2000 | 3150 |
| 2 | Rated pressure | mpa | 28 | 28 |
| 3 | Travel | mm | 1000 | 1000 |
| 4 | Max. opening | mm | 2200 | 2200 |
| 5 | Min. opening | mm | 1200 | 1200 |
| 6 | Nominal pressure of side cylinder | KN | 200 | 200 |
| 7 | Side cylinder stroke | mm | 800 | 800 |
| 8 | Effective area of workbench | mm | 1400*1200 | 1500*1200 |
| 9 | Workbench thickness | mm | 140 | 160 |
| 10 | Motor | kw | 7.5 | 15 |
| 11 | Pump | Ml/r | 40 | 63 |
