| nguồn điện: | thủy lực | Điện áp: | 380V |
|---|---|---|---|
| cân nặng: | 3550kg | lực lượng danh nghĩa: | 200t |
| Đường kính xi lanh: | 800 | Công suất động cơ: | 7,5kw |
| trọng lượng (kg): | 5000 | Loại máy: | Máy ép thủy lực |

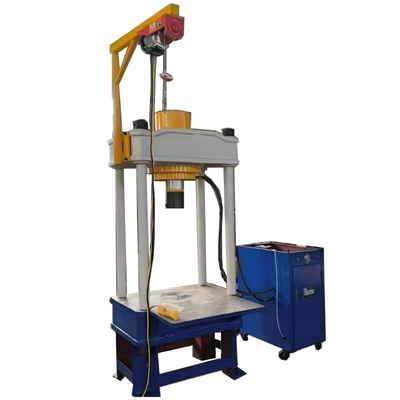

XDEM 200T Track Adjuster Spring Press Hydraulic Press
This machine is specially designed for the disassembly and installation of excavator track adjuster springs, relying on a hydraulic system to provide stable and controllable pressure, it can easily complete the compression and reset operations of the tension springs, solving the problems of manual disassembly and easy damage to components.
Typical structure
The main body is mostly a frame structure to ensure stability during operation, and some models are equipped with protective devices to prevent injury caused by spring reset;
Equipped with a hydraulic power unit, it can accurately adjust pressure and adapt to the specifications of tension springs for different models of excavators;
There is a dedicated spring positioning fixture that can quickly fix the tensioning device of the excavator track, improving work efficiency.
Applications
Widely used in equipment maintenance in excavator repair shops and construction sites, especially suitable for professional disassembly and maintenance of tension springs in large excavators, mining excavators and other models.
Main Parameters:
| No. | Item | Unit | YM200T | YM315T |
| 1 | Nominal pressure | KN | 2000 | 3150 |
| 2 | Rated pressure | mpa | 28 | 28 |
| 3 | Travel | mm | 1000 | 1000 |
| 4 | Max. opening | mm | 2200 | 2200 |
| 5 | Min. opening | mm | 1200 | 1200 |
| 6 | Nominal pressure of side cylinder | KN | 200 | 200 |
| 7 | Side cylinder stroke | mm | 800 | 800 |
| 8 | Effective area of workbench | mm | 1400*1200 | 1500*1200 |
| 9 | Workbench thickness | mm | 140 | 160 |
| 10 | Motor | kw | 7.5 | 15 |
| 11 | Pump | Ml/r | 40 | 63 |
